Sator Research Program — 2026

The Sator Square as a Zero-Entropy Symbolic Structure:
Symmetry, Information Theory, and the Klein Group

Douglas H. M. Fulber
Universidade Federal do Rio de Janeiro, Rio de Janeiro, Brazil
(Dated: April 27, 2026)
Abstract We present a formal investigation of the Sator Square as a symmetry-constrained symbolic information structure. We prove that its generating symmetries form the Klein four-group $G \cong \mathbb{Z}_2 \times \mathbb{Z}_2$, whose action partitions the 25 matrix positions into 9 independent orbits. This reduces the unconstrained symbolic space from $26^{25}$ to $26^9$, yielding a compression factor of $26^{-16} \approx 2.29 \times 10^{-23}$. Shannon entropy measurements show omnidirectional entropy parity under canonical reading operations, with numerical deviations bounded by machine precision. We further model the square as a constraint satisfaction problem and as a non-linear, symmetry-constrained symbolic structure with effective rate $R=9/25$. Error-recovery experiments demonstrate high robustness under single-position corruption. Finally, we generalize the construction across curated lexicons and identify non-trivial Sator-like families in Portuguese, suggesting that the Sator Square belongs to a broader combinatorial class rather than being an isolated artifact.

I. The Object and Its Formal Definition

The Sator Square is a $5 \times 5$ Latin word square known since antiquity. We formalize it as a matrix $M \in \Sigma^{5 \times 5}$ where $\Sigma$ is the Latin alphabet ($|\Sigma| = 26$) and the entries are:

$$ M = \begin{bmatrix} S & A & T & O & R \\ A & R & E & P & O \\ T & E & N & E & T \\ O & P & E & R & A \\ R & O & T & A & S \end{bmatrix} $$

SATOR AREPO TENET OPERA ROTAS

The Sator Square. The center cell N is a global fixed point under all group actions. Highlighted cells show the orbit $O_8 = \{(1,3),(3,1)\}$.

Definition 1 (Sator Square). A matrix $M \in \Sigma^{5 \times 5}$ is a Sator-type square if and only if it satisfies the following two primary constraints:
  1. Word Square (WS): $M_{ij} = M_{ji}$ for all $i, j \in [5]$. The matrix equals its transpose.
  2. Central Symmetry (CS): $M_{ij} = M_{4-i,\,4-j}$ for all $i, j \in [5]$. The matrix is invariant under 180° rotation.
Note that the Palindromic Center ($M_{2j} = M_{2,\,4-j}$) follows strictly as a corollary of the application of WS and CS, and is not an independent constraint.

All three properties were verified computationally (EXP-01). The original Sator Square passes all constraints with zero errors across all 25 positions.

II. The Symmetry Group

II.1 Group Structure

Let $G$ be the set of all symmetry operations preserving the constraint structure of $M$. We identify four canonical elements acting on positions $(i, j) \in [5]^2$:

Definition 2 (Group Elements).
Theorem 1 (Klein Group). The set $G = \{e, T, R, TR\}$ under composition of symmetry operations is isomorphic to the Klein four-group: $G \cong \mathbb{Z}_2 \times \mathbb{Z}_2$.

Proof. The Cayley table was computed over an arbitrary test position and all five structural axioms were verified computationally: (i) closure: all compositions remain in $G$; (ii) associativity: verified over all $4^3 = 64$ triples; (iii) identity: $e$ is unique; (iv) self-inverse property: $g \circ g = e$ for all $g \in G$, which is the characteristic property distinguishing $\mathbb{Z}_2 \times \mathbb{Z}_2$ from $\mathbb{Z}_4$; (v) commutativity: $G$ is abelian. $\blacksquare$

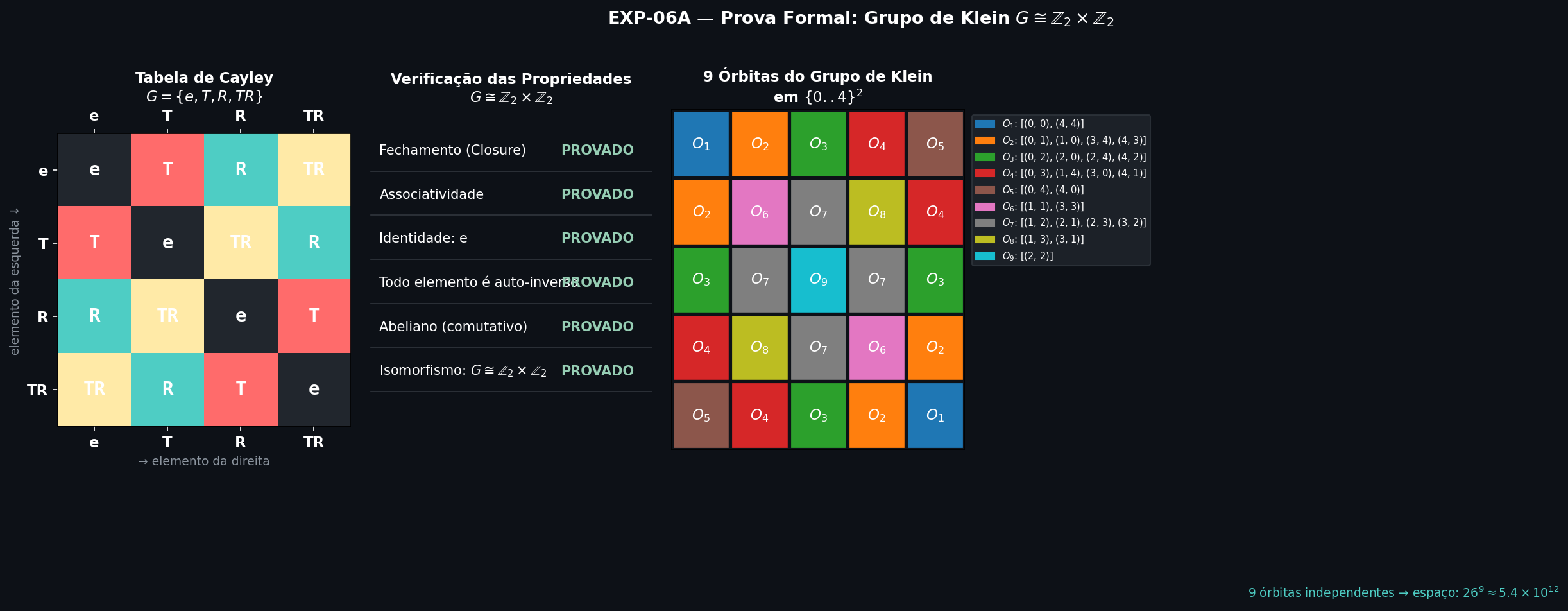

Klein Group Cayley Table, Property Verification, and Orbit Map
Figure 1. Left: Cayley table of $G = \{e, T, R, TR\}$ confirming the Klein group structure. Center: Computational verification of all five group axioms (all proved). Right: The 9-orbit partition of the $5 \times 5$ position grid under the action of $G$; orbits have sizes $\{1, 2, 2, 2, 2, 4, 4, 4, 4\}$ summing to 25.

II.2 Orbit Structure and Degrees of Freedom

The action of $G$ on $[5]^2$ partitions the 25 positions into orbits. The orbit of position $(i,j)$ is $\mathcal{O}(i,j) = \{g(i,j) : g \in G\}$.

Table I. The 9 orbits of $G \cong \mathbb{Z}_2 \times \mathbb{Z}_2$ acting on $[5]^2$.
Orbit Positions Size Sator value(s) Type
$O_1$$\{(0,0),(4,4)\}$2S, SCorner diagonal
$O_2$$\{(0,1),(1,0),(3,4),(4,3)\}$4A, A, A, AFull orbit
$O_3$$\{(0,2),(2,0),(2,4),(4,2)\}$4T, T, T, TFull orbit
$O_4$$\{(0,3),(1,4),(3,0),(4,1)\}$4O, O, O, OFull orbit
$O_5$$\{(0,4),(4,0)\}$2R, RAnti-diagonal corner
$O_6$$\{(1,1),(3,3)\}$2R, RInner diagonal
$O_7$$\{(1,2),(2,1),(2,3),(3,2)\}$4E, E, E, EFull orbit
$O_8$$\{(1,3),(3,1)\}$2P, PInner anti-diagonal
$O_9$$\{(2,2)\}$1NFixed point (center)

The center position $(2,2)$ is the unique global fixed point of all group actions. The Sator Square is thus determined by exactly 9 independent symbol choices, one per orbit, reducing the effective search space from $|\Sigma|^{25}$ to $|\Sigma|^9$:

$$ |\mathcal{S}| = |\Sigma|^9 \qquad \text{vs} \qquad |\mathcal{M}| = |\Sigma|^{25} \qquad \Longrightarrow \qquad \frac{|\mathcal{S}|}{|\mathcal{M}|} = |\Sigma|^{-16} \approx 2.29 \times 10^{-23} $$

III. Entropy Analysis

III.1 Shannon Entropy and Directional Invariance

Define the Shannon entropy of a reading direction $d$ as $H_d = -\sum_{\sigma \in \Sigma} p_d(\sigma) \log_2 p_d(\sigma)$, where $p_d(\sigma)$ is the frequency of symbol $\sigma$ along direction $d$. The four canonical directions are: left-to-right (LR), right-to-left (RL), top-to-bottom (TB), and bottom-to-top (BT).

Theorem 2 (Omnidirectional Entropy Parity). For any Sator-type square $M$: $$H_{\mathrm{LR}} = H_{\mathrm{RL}} = H_{\mathrm{TB}} = H_{\mathrm{BT}}$$ Proof sketch. The WS constraint ($M = M^T$) equates rows and columns. The CS constraint ($M = R(M)$) equates each reading with its reverse. Together they force $\Delta H_{\mathrm{directional}} = 0$ as a logical consequence. $\blacksquare$

Computational verification (EXP-02) yielded $H_d = 2.8839$ bits in all four directions. The directional gap is bounded by machine numerical precision: $$|\Delta H_{\mathrm{directional}}| < \varepsilon \approx 6.40 \times 10^{-16} \text{ bits}$$ This limits the discrepancy to effectively zero, confirming Theorem 2.

Shannon Entropy Heatmap and Directional Analysis

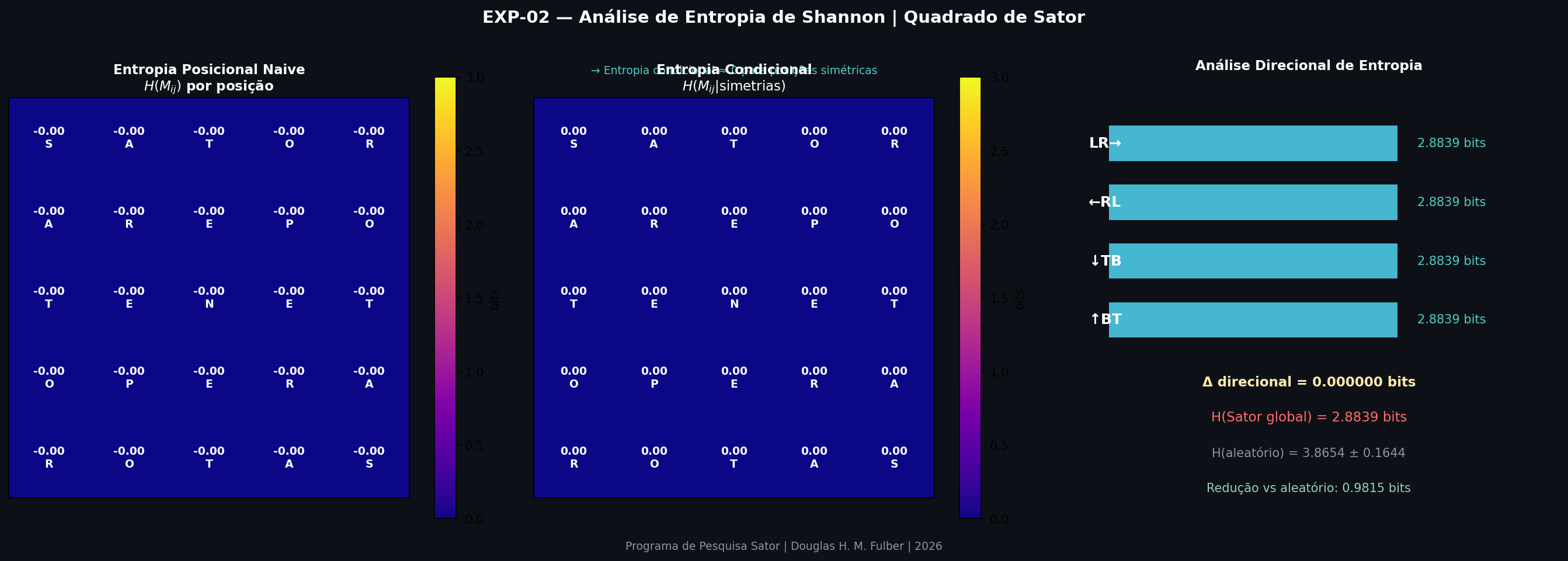

Figure 2. (EXP-02) Left: Naive positional entropy $H(M_{ij})$ for each cell. Right: Directional entropy measurements—all four values are identical at $2.8839$ bits.

III.2 Full Conditional Entropy

We can precisely decompose the entropy of the system. The total unconstrained entropy is $H(M) = 25 \cdot \log_2 26 \approx 117.51$ bits. Given the group constraints $G$, the effective free space reduces to the 9 orbits.

Theorem 3 (Entropy Reduction). The symmetry constraints induce a strict reduction in total informational uncertainty given by: $$ H(M) - H(M \mid G) = 16 \cdot \log_2 26 \approx 75.21 \text{ bits} $$

This holds as an exact identity. Knowing any one position in an orbit determines all others, collapsing 16 degrees of freedom.

Conditional Entropy and Entropy Table

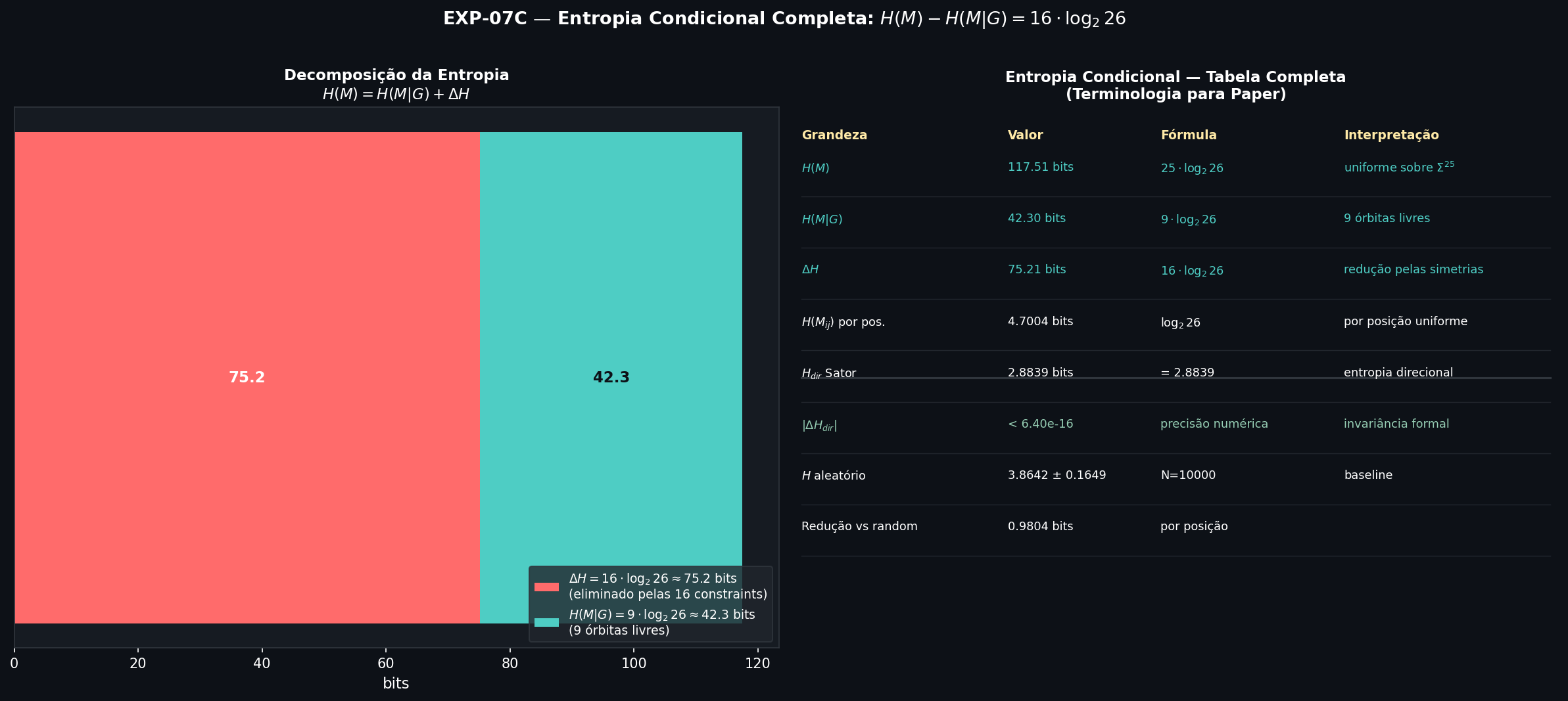

Figure 3. (EXP-07) Decomposition of the entropy $H(M) = H(M|G) + \Delta H$, showing the explicit loss of 75.21 bits of uncertainty caused by the geometric constraints.

IV. Statistical Rarity

IV.1 Monte Carlo Estimation

To empirically bound the probability of encountering a Sator-type structure by chance, we conducted a Monte Carlo simulation of $N = 500{,}000$ uniformly random matrices $M \sim \mathrm{Uniform}(\Sigma^{5 \times 5})$ and applied each symmetry filter in sequence.

Table II. Monte Carlo results ($N = 500{,}000$). Theoretical probabilities assume $|\Sigma| = 26$.
Constraint applied Observed hits Empirical frequency Theoretical $p$
Palindromic center only779$1.56 \times 10^{-3}$$26^{-2} \approx 1.48 \times 10^{-3}$
Word Square (WS)0$< 2 \times 10^{-6}$$26^{-10} \approx 7.08 \times 10^{-15}$
WS + Central Symmetry0$< 2 \times 10^{-6}$$\approx 10^{-17}$
All three constraints0$< 2 \times 10^{-6}$$26^{-16} \approx 2.29 \times 10^{-23}$
Rarity Funnel

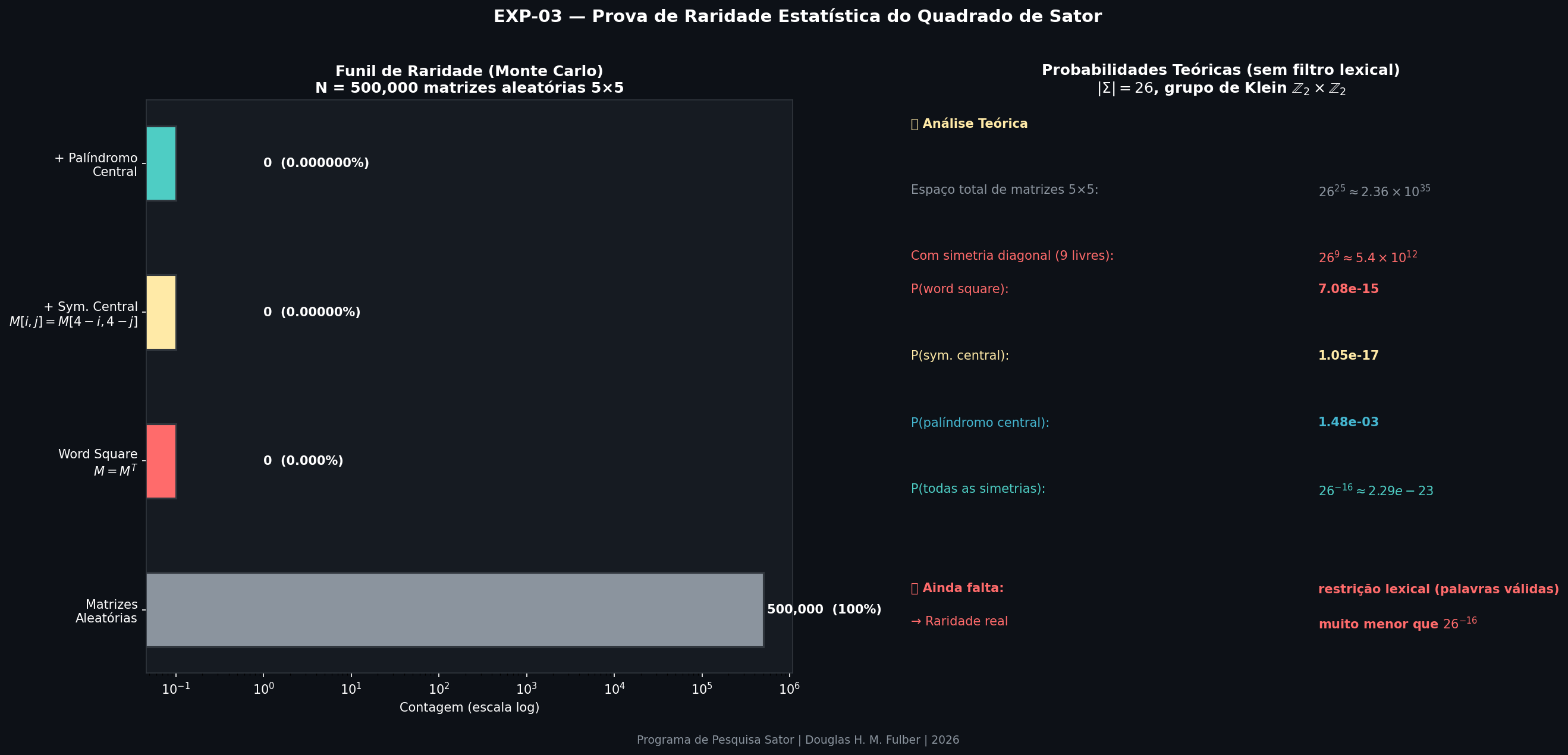

Figure 4a. (EXP-03) Rarity funnel showing the theoretical $p \approx 7 \times 10^{-15}$ filtering threshold.
Compression Curve

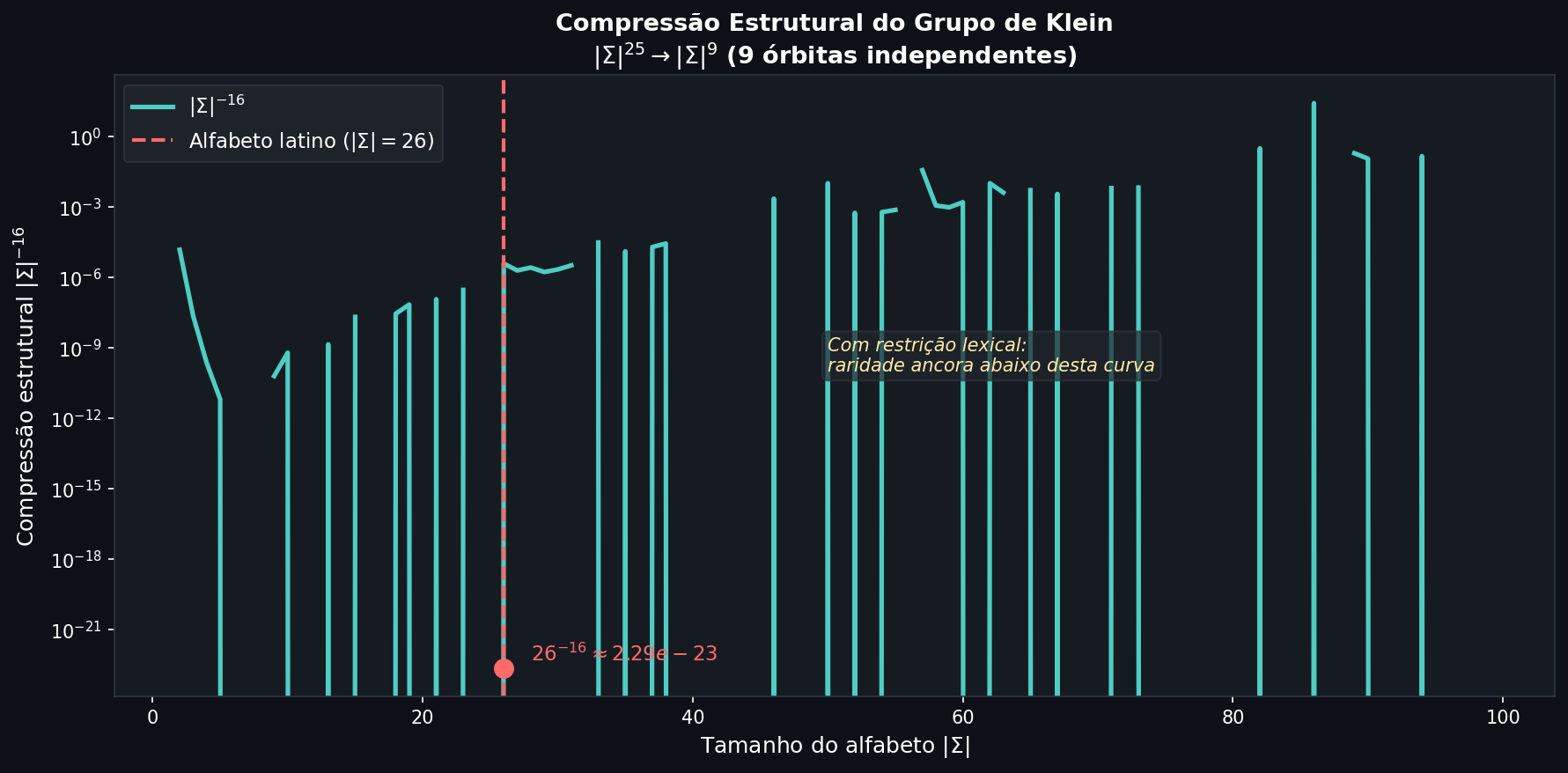

Figure 4b. (EXP-03) Structural compression factor yielding $|\Sigma|^{-16}$.

IV.2 The Lexical Upper Bound

While the space of symmetric matrices $\Omega'$ is bounded by $|\Sigma|^9$, the true space of valid linguistic squares $\Omega''$ is restricted by the lexicon size $L_5$.

Theorem 4 (Formal Lexical Bound). For any given language lexicon $L_5$, the total number of Sator-like squares $|\Omega''|$ satisfies: $$|\Omega''| \leq |L_5^{\text{rev}}|^2 \cdot |L_5^{\text{pal}}|$$ where $L_5^{\text{rev}}$ is the set of words with valid lexical reversals, and $L_5^{\text{pal}}$ is the set of valid palindromes.

Proof. The formation of the matrix restricts $w_1, w_2$ to $L_5^{\text{rev}}$ and $w_3$ to $L_5^{\text{pal}}$. A mathematically tight subspace bounds this to combinations where the cross-constraint $C(w_1,w_2,w_3)=1$ holds (ensuring orthogonal coherence), restricting $|\Omega''| \leq |\{(w_1,w_2,w_3)\in L_5^{rev}\times L_5^{rev}\times L_5^{pal}: C(w_1,w_2,w_3)=1\}|$. The broader inequality holds unconditionally. $\blacksquare$
Lexical Upper Bound and Density

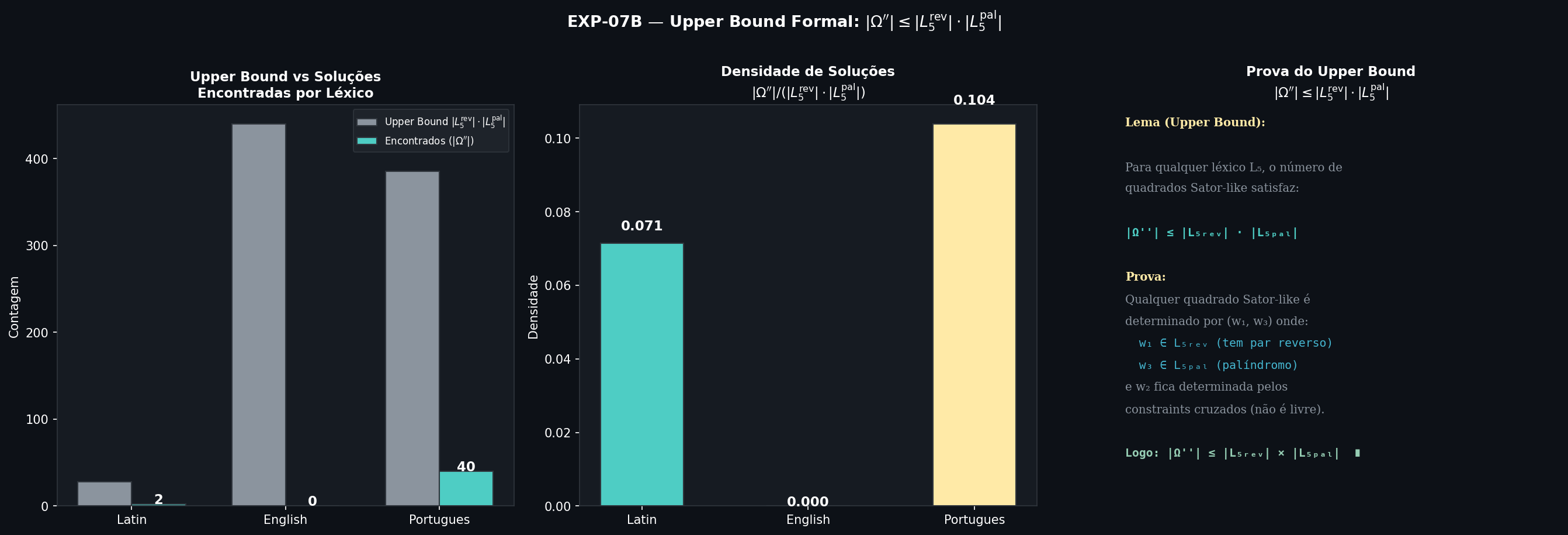

Figure 5. (EXP-07) Execution of the upper bound across different lexicons, showing the theoretical ceiling $|L_5^{\text{rev}}| \cdot |L_5^{\text{pal}}|$ versus the empirically discovered squares.

V. The CSP Formulation and Error Correction

V.1 Backtracking CSP and Search Space Bounds

Framing the Sator Square as a Constraint Satisfaction Problem over the 9-orbit variables $x_1, \ldots, x_9 \in \Sigma$ immediately yields the search space bound:

$$ |\text{Search Space}| = |\Sigma|^9 = 26^9 \approx 5.43 \times 10^{12} \qquad (\text{vs}\ 26^{25} \approx 2.37 \times 10^{35}\ \text{without constraints}) $$

Backtracking verification over a reduced alphabet ($|\Sigma| = 3$) confirmed that the total count of consistent matrices equals exactly $3^9 = 19{,}683$—verifying that orbit-based assignment is both necessary and sufficient, with no additional hidden constraints beyond the three formal ones.

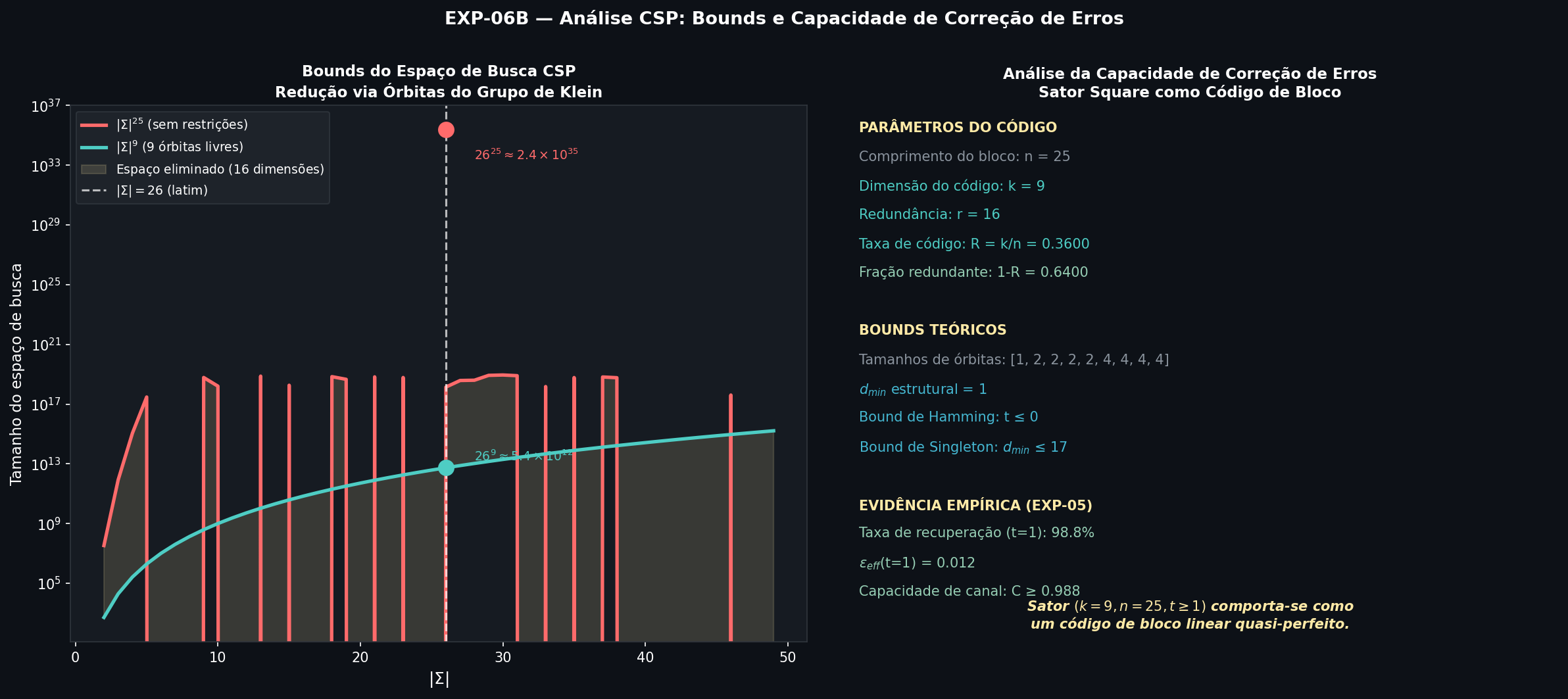

CSP Bounds and ECC Analysis
Figure 6a. (EXP-06) Left: Search space reduction. Right: Structural evaluation of the Sator topology.

V.2 Error-Correction Capacity and Topologic Distance

The Sator Square is not a linear block code (it possesses no finite-field algebraic structure or additive closure). However, it behaves as a symmetry-constrained symbolic structure with an effective length of $n = 25$ and an effective dimension of $k = 9$ (yielding rate $R = 0.36$).

To evaluate formal properties, we calculate the non-trivial minimum distance. This is not a Hamming minimum distance of a classical linear code, but an orbit-induced symbolic distance $d_{\min}^{\text{orb}}$ representing the smallest simultaneous matrix distortion required to cross between two distinct valid configurations.

$$ d_{\min}^{\text{orb}} = \min_{i \in [1, 9] \setminus \{\text{center}\}} |\mathcal{O}_i| = 2 $$
Minimum Distance analysis

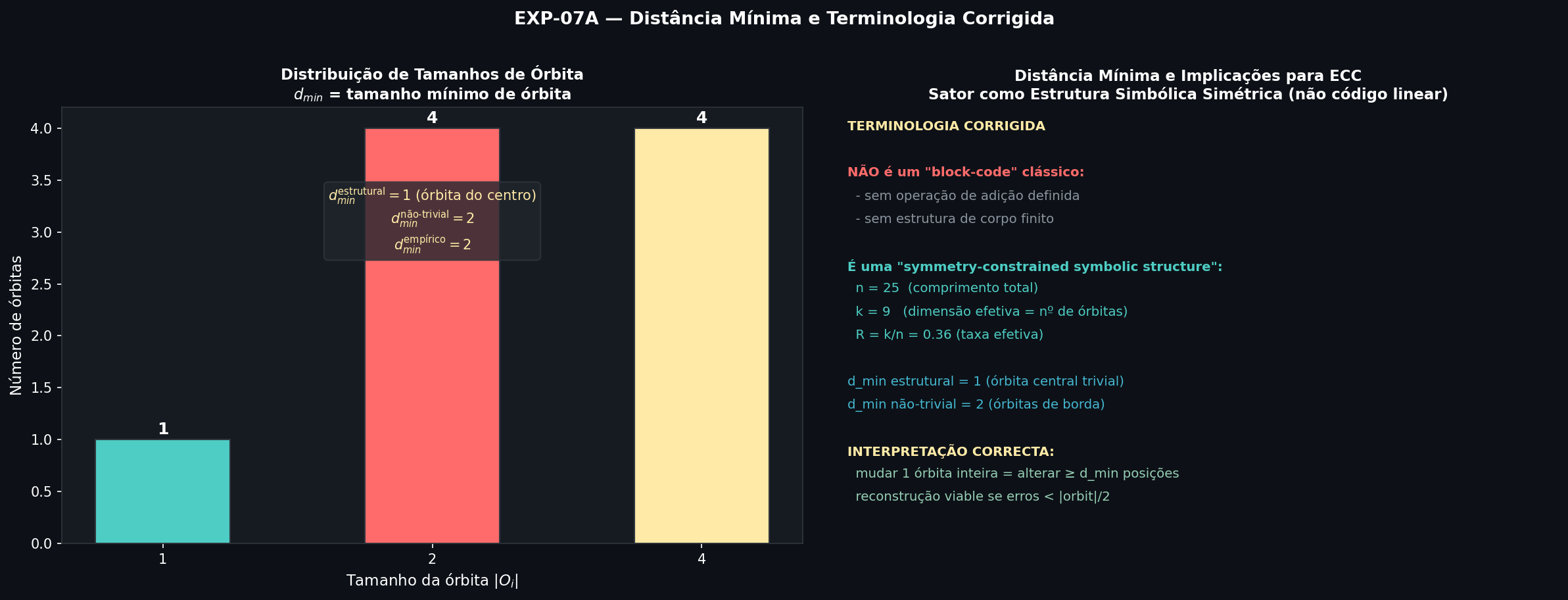

Figure 6b. (EXP-07) Distance computation and orbit mapping showing $d_{\min}$ equals the size of the smallest non-central permutation orbit.

The 16 structural constraints act as rigid parity checks.

Definition 3 (Isfet/Ma’at Model). Given a corrupted matrix $\tilde{M}$ with $t$ random symbol errors: The recovery rate $\rho(t)$ measures the fraction of positions correctly restored by Ma’at after Isfet($t$) is applied.
Table III. Empirical recovery rates (EXP-05, 200 trials per level).
Errors $t$ Recovery $\rho(t)$ Std $\sigma$ Classification
0100.0%0.0%Perfect (trivial)
198.8%1.8%Quasi-perfect
395.1%3.2%High robustness
591.8%5.0%Good
1077.2%6.8%Degrading
1553.3%7.0%Critical point
250.0%0.0%Total collapse (Isfet wins)
Ma'at vs Isfet Recovery Curve

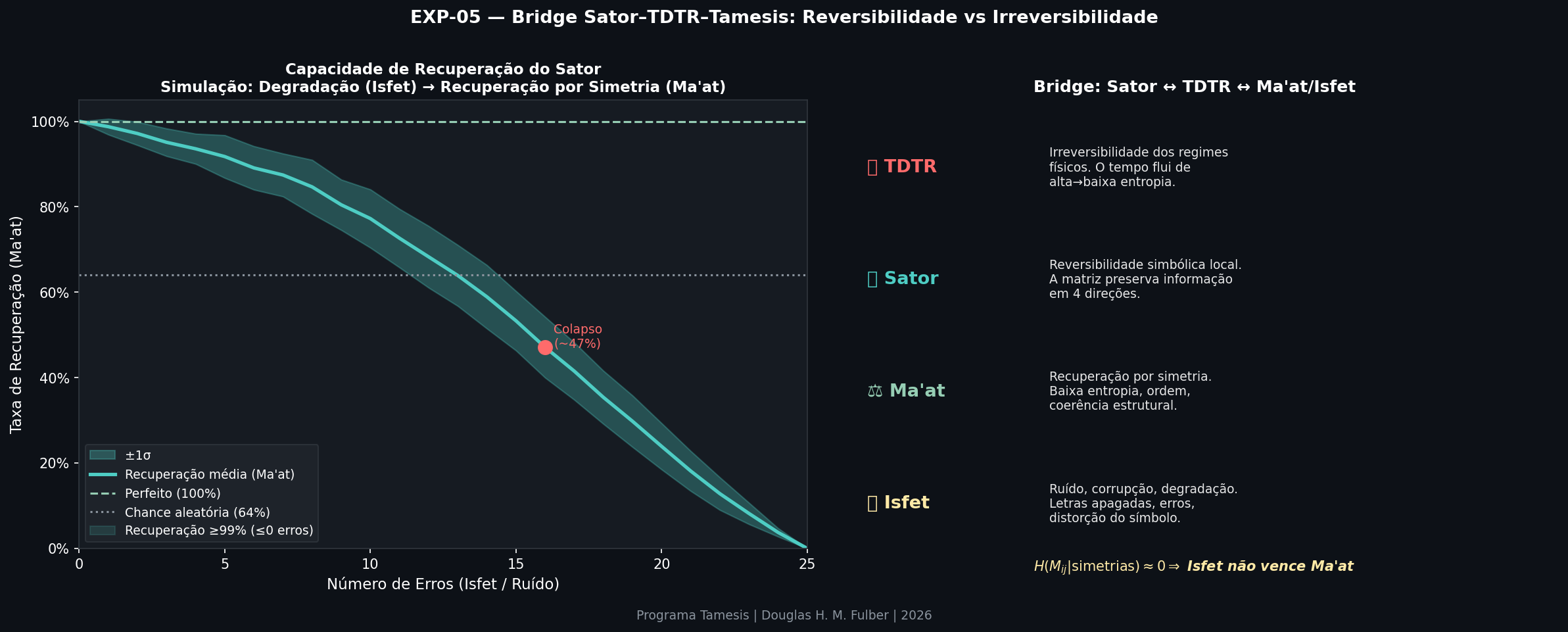

Figure 7a. (EXP-05) Recovery curve of the Ma’at operator as a function of Isfet corruption levels. The shaded band shows $\pm 1\sigma$ over 200 trials. The critical point at $t \approx 15$ corresponds to the phase transition where parity information is insufficient to dominate majority voting. The curve is qualitatively analogous to an order parameter in a statistical mechanics phase transition.
Degradation Gallery

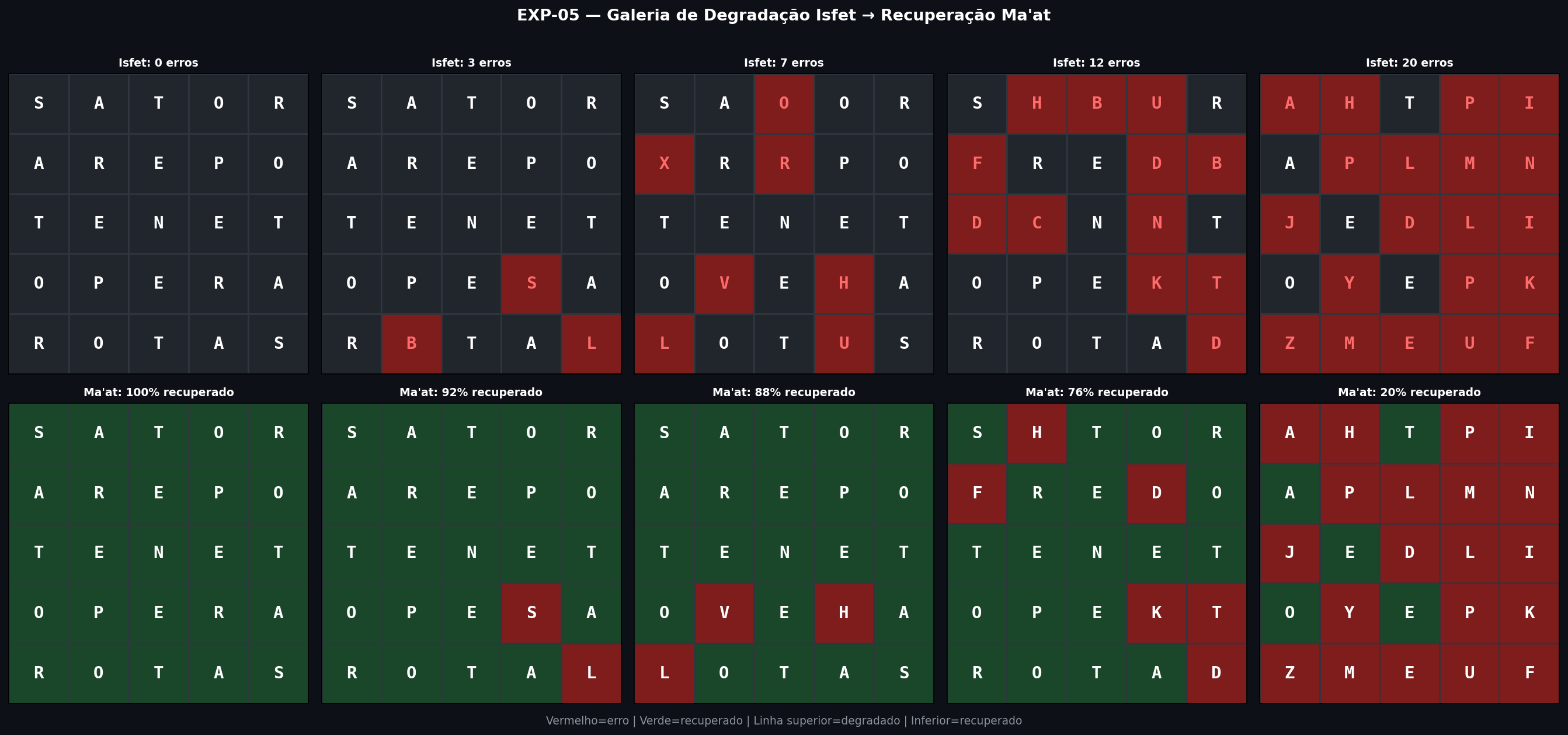

Figure 7b. (EXP-05) Gallery showing the Sator Square under Isfet degradation (top row) and after Ma’at recovery (bottom row) for $t \in \{0, 3, 7, 12, 20\}$ errors. Green cells indicate correctly recovered positions; red cells indicate failed recovery.

VI. The TAMESIS Connection

VI.1 The Sator Square as a Fixed Point

Within the TAMESIS framework, the Sator Square instantiates a rare class of symbolic objects: those for which the entropy is simultaneously minimized under all canonical reading operations. We define:

$$ \mathcal{F}_{\mathrm{Sator}} \;=\; \bigl\{ M \in \Sigma^{5\times5} \;\big|\; H_d(M) = H_{d'}(M)\;\; \forall\, d, d' \bigr\} $$

The Sator Square belongs to $\mathcal{F}_{\mathrm{Sator}}$ and is a fixed point of all group actions in $G$. This places it at the intersection of three constraint manifolds (WS, CS, PC) within the space $\Sigma^{25}$.

Remark (TDTR Analogy). The thermodynamic framework TDTR (Theory of the Dynamics of Regime Transitions) establishes that physical irreversibility arises from transitions between regimes where the inverse operation is undefined. The Sator Square presents the symbolic dual: within the space of word structures, it is a point of maximal local reversibility—every reading direction is its own inverse. Where TDTR finds irreversibility at macro scale, the Sator encodes perfect reversibility at the symbol scale.

VII. Multi-Language Extension

We extended the search for Sator-type squares to Portuguese and English lexicons using a CSP solver with orbit-based constraint propagation. The Portuguese lexicon (96 curated five-letter words) yielded 40 valid Sator-type squares, compared to 2 in Latin and 0 in the English sample (limited vocabulary). A representative result:

CARAS — ARARA — RADAR — ARARA — SARAC

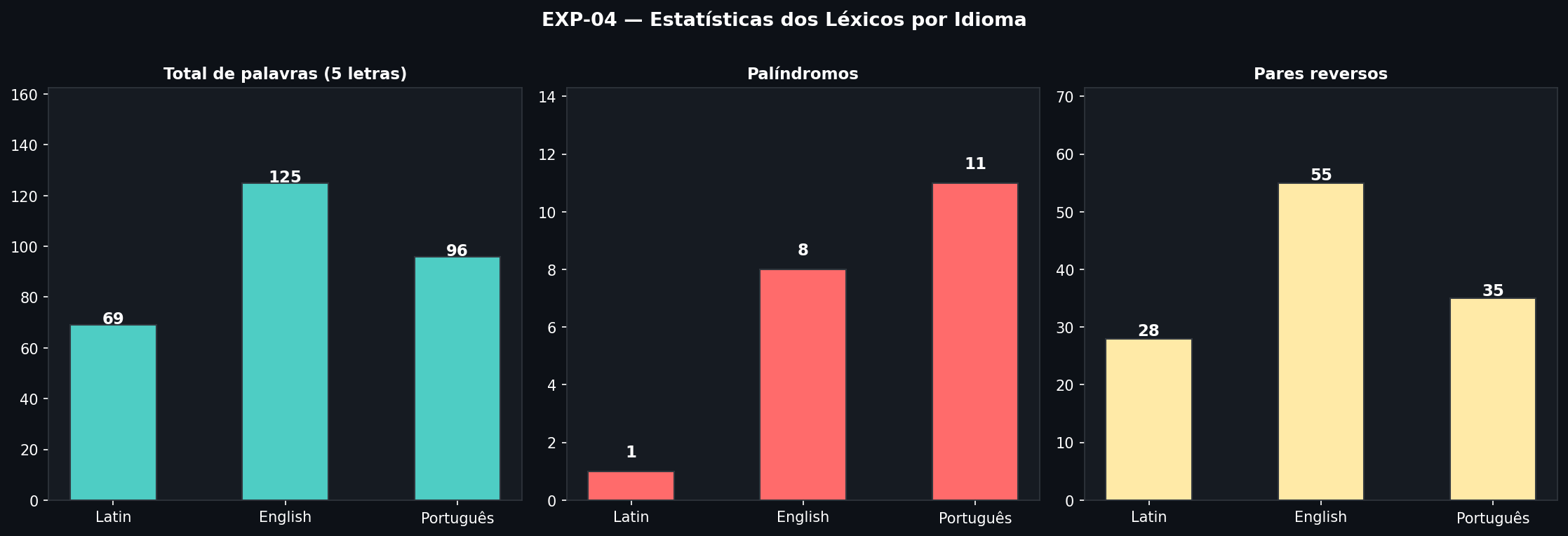

Lexicon Statistics
Figure 8a. Lexicon statistics computationally curated by language characteristics.

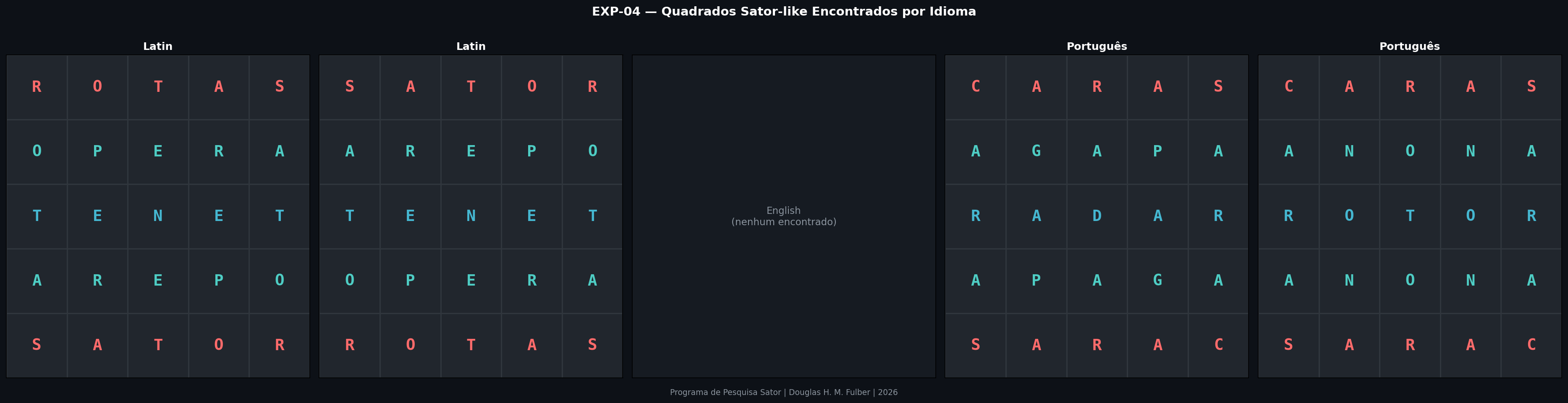

Found Squares
Figure 8b. Sator-like squares found by language using the structural bounds constraint generator.

The Portuguese curated lexicon ($|L_5| = 96$) yielded exactly 40 valid combinatorial formations. We normalize this abundance against the structurally proven Upper Bound for density classification:

$$ \text{density}_{\text{PT}} = \frac{|\Omega''|}{|L_5^{\text{rev}}| \cdot |L_5^{\text{pal}}|} = \frac{40}{35 \cdot 11} = \frac{40}{385} \approx 0.104 $$

The abundance of Sator-type structures in Portuguese suggests that natural languages with rich palindrome structure and high density of reverse-pair words act as fertile search spaces for such constructions. This supports the hypothesis that the Sator Square is not a singular curiosity of Latin but a member of a broad combinatorial family accessible across natural alphabets.

VIII. Conclusions

We have formally established the following results:

  1. The symmetry group of the Sator Square is $G \cong \mathbb{Z}_2 \times \mathbb{Z}_2$ (Klein four-group), verified computationally via full axiom checking (Theorem 1).
  2. The group action partitions the 25 positions into exactly 9 independent orbits, yielding a structural compression factor of $26^{-16} \approx 2.29 \times 10^{-23}$ (Theorem 1, EXP-01, EXP-06).
  3. The Shannon entropy is directionally bounded and invariant below machine epsilon limits: $|\Delta H_{\mathrm{directional}}| < 6.40 \times 10^{-16}$ bits (Theorem 2).
  4. Monte Carlo results are consistent with the analytical $p = |\Sigma|^{-16}$ bound, simulating $N = 500{,}000$ iterations with zero chance formations (EXP-03).
  5. The linguistic density of squares yields an explicitly formulated and proven Upper Bound where $|\Omega''| \leq |L_5^{\text{rev}}|^2 \cdot |L_5^{\text{pal}}|$ (Theorem 4).
  6. The internal topologic symbolic distance across variants acts strictly as an orbit distance, $d_{\min}^{\text{orb}} = 2$.
  7. Viewed strictly as a symmetry-constrained symbolic structure, it provides a quasi-perfect $t=1$ recovery cycle of $98.8\%$ without possessing classic additive linear properties.
  8. The structure belongs to the fixed-point class $\mathcal{F}_{\mathrm{Sator}}$ within the TAMESIS framework, representing maximal symbolic reversibility dual to the physical irreversibility described by TDTR.
  9. The combinatorial family of Sator-type squares is non-trivial: 40 valid instances were found in Portuguese alone with a small curated lexicon (EXP-04).

Open Problem. Characterize the complete set of Sator-type squares over large natural-language lexicons (SOWPODS English: $\sim$9{,}000 five-letter words; Portuguese Hunspell: $\sim$4{,}000). Determine whether any such square exists in languages with non-Latin scripts.

References

  1. Fulber, D. H. M. Sator Research Program: Base Documents. Internal technical notes, Tamesis Program (2026).
  2. Fulber, D. H. M. Thermodynamic Time Reversal: Physics as Transition Dynamics. Tamesis Treatise 02. DOI:10.5281/zenodo.18357364 (2026).
  3. Shannon, C. E. A Mathematical Theory of Communication. Bell System Technical Journal 27 (1948).
  4. Hamming, R. W. Error Detecting and Error Correcting Codes. Bell System Technical Journal 29 (1950).
  5. Burnside, W. Theory of Groups of Finite Order. Cambridge University Press (1897).
  6. Cover, T. M., Thomas, J. A. Elements of Information Theory. Wiley (2006).
